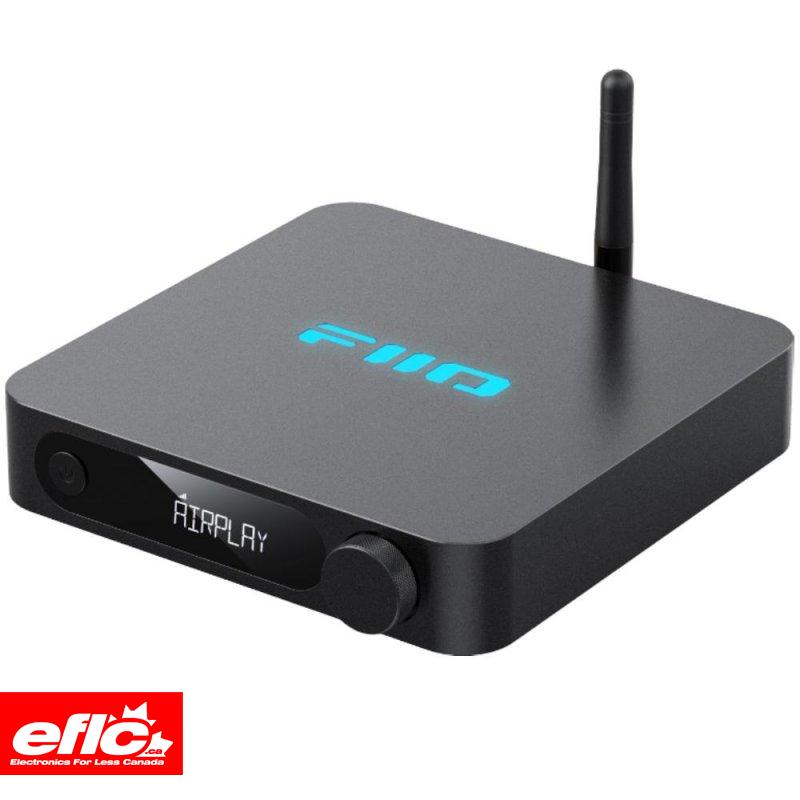

Streaming Music Receiver

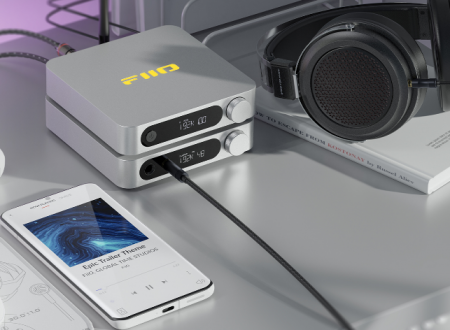

The SR11 is a high-performance lossless streaming music receiver, also known as a music streamer, supporting various network streaming protocols. When paired with an external decoder, it allows you to easily set up a streaming HiFi system, enabling you to enjoy high-bitrate lossless streaming audio.

AirPlay Streaming Protocol

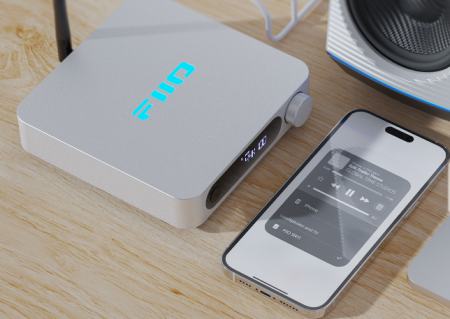

Pair with an iPhone, iPad, MacBook, iMac, or Mac mini and stream to the SR11 via AirPlay for a smooth and convenient listening experience.

Enjoy Roon Ready Streaming

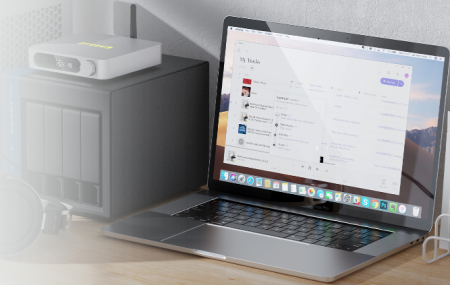

With Roon, you can conveniently manage both online and local music libraries by allowing quick playback of local music from a NAS or other devices and easy access to the streaming music catalog. If you have multiple audio systems set up, Roon enables you to control different devices to play different or the same music for a fully integrated and convenient streaming experience.

Comprehensive Digital Outputs

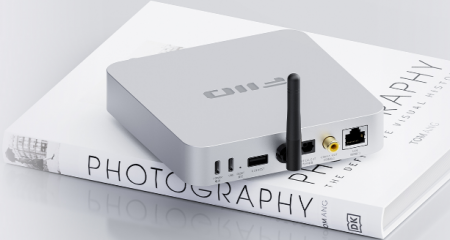

The optical, coaxial, USB Type-A and USB Type-C digital outputs ensure that you can easily connect to the device of your choice for real-time music streaming. Listen to HiFi music without being bound by wires.

Powerful Multi-Core Processor with Ultra-low Power

The SR11 features the X2000 high-performance multi-core processor, with one core based on the unique XBurst2 dual-logic core and another XBurst small core. The processor boasts excellent computational power, strong real-time control capabilities, and ultra-low power consumption. The chip ensures precise processing of audio signals for stable and smooth music playback.

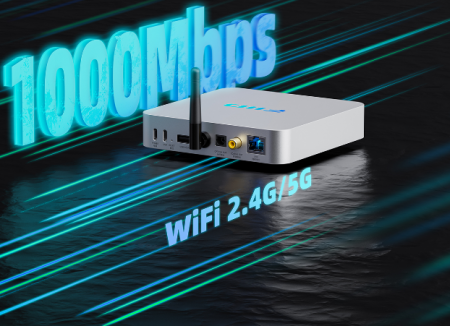

Stably Connected, Wired and Wirelessly

The Ethernet port supports speeds up to 1000Mbps over wired networks for fast and stable transmission of data. The AP6256 Wi-Fi module supports both 2.4GHz and 5GHz dual-band wireless networks which help to ensure stable wireless transmission of lossless audio.

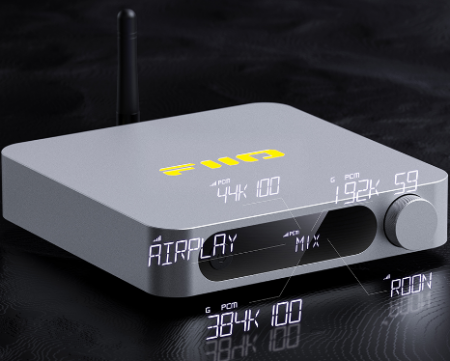

Custom LCD Display, Intuitive Layout and Easy to Use

The screen lets you quickly know the device's operating mode, network status, and current volume. The knob allows you to easily perform various operations with ease, ensuring you have total control.

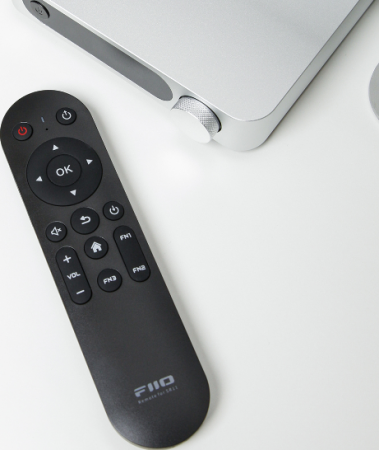

Included Custom Infrared Remote Control, Ultimate Convenience

The included custom infrared remote control allows you to take control over a long distance - making it extremely easy to select input, output, set volume, and other functions with just one click. And no pairing is required-the remote is ready to use out of the box.

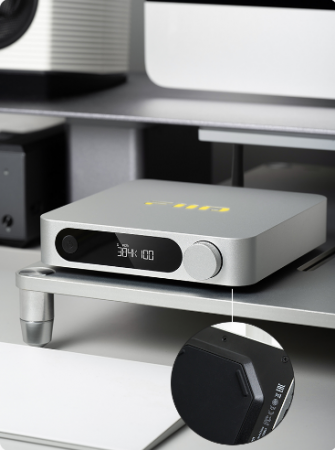

Slim and Petite, Easy to Put Anywhere

Its slim and petite aluminum alloy body also features a separately molded silicone anti-slip pad for better stability. It can easily be paired with any external decoding device, taking up minimal space and allowing you to flexibly place it wherever.

Powerful Functionality, Constantly Updated

FIIO's proven development team will continue to provide firmware upgrades for the SR11, bringing more new features like: Bluetooth reception, local playback, and FIlO LINK.

Specifications:

General Specifications:

• Name/Model: SR11
• Hardware solution: SoC: X2000, WiFi module: AP6256, Power supply: G2257Q51U,EthernetYT8531C
• Volume control: Knob/Remote control
• Weight: About 375g
• Dimensions: About 157x133x32.3mm (including feet)
• Working modes: MIX (Roon Ready and AirPlay two in one), Roon Ready, AirPlay
• Wireless network: 5G+2.4G dual-band Wi-Fi 802.11 b/g/n/ac
• Max supported sampling rate for ROON receiving: USB: 768kHz-32bit/DSD256 (DoP)
• Actual receiving specification depends on the decoding capability of the power amp
• Coaxial: 192kHz-24bit/DSD64
• Optical: 192kHz-24bit/DSD64
• Max supported sampling rate for AirPlay receiving: All PCM/DSD/MQA will be switched t44.1kHz-16bit before output
• MQA: USB/Coaxial/Optical all support MQA when in full volume
• Digital output distortion: 0.000006% (0dB 1kHz 192k 24bit)
• Display: LCD
• Remote control: Supports infrared remote control (only the one included in the accessory)
• Display details: Sampling rate, volume level, working mode, output mode, etc.
• Sampling rate display (by LOGO light): 48kHz and below: Cyan; Above 48kHz: Yellow; DSDGreen
• Firmware upgrade: Supports upgrade through a USB flash disk (both USB-A and Type-C ports)
• FiiO Control: N/A

Buttons and Ports:

• Button: Power button
• Knob: Encoder knob (with volume control knob)
• Digital coaxial out: RCA port
• Digital optical out: Optical port
• USB: USB-A*1 (data transmission) + Type-C*2 (data transmission*1 + power supply*1)
• Wired network: Gigabit Ethernet port
• Reset hole: Device on, short press the button in the reset hole

Power Supply Parameters:

• Power consumption:
• Static current: 250mA (wired network connection, default brightness screen and LOGO light)
• Coaxial/Optical output current: 250mA (wired network connection, default brightness of screen and LOGO light)
• USB output current: 290mA (wired network connection, default brightness of screen and LOlight, no power consumption for power amp)
• Power supply: DC 5V/2A
• Battery capacity: No battery
