Tonewinner AD-7300 7 Channels AV Power Audio Amplifier BLACK

That’s EFLC — Entertaining Finds, Lower Checkout.

$1,975.00

Secure One-Page Checkout

This product is brand-new and factory sealed Tonewinner AD-7300 Low Stock : Order Soon
UPC : TBD 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back Curbside pick up available in Richmond Hill, Ontario.

Free Shipping
Express Shipping

Order Now : Ships Wed
Standard Canada-Wide Free Shipping on this 27kg package

Use checkout code THATSEFLC until Jan 31.

$165/mo suggested payments with 12 month special financing now with Flexiti.Apply once, shop anytime with Flexiti!

Details

AD-7300PA+ is a 7 channel Hi-Fi amplifier which is specially designed to match the AD-7300HD processor. It is a high end & high power amplifier with multi-protection including overheat, overload, overcurent, overvoltage protection, so as to offer reliable performancce for home theater system. As a top 10 audio brand in China, Tonewinner has 30+ years experience in designing and manufacturing acoustic products. As an original supplier, Tonewinner always warmly welcomes distributors, partners and customers around the world.

AD-7300PA+

7 Channel Hi-Fi Amplifier.

Description image for Tonewinner AD-7300 7 Channels AV Power Audio Amplifier BLACK

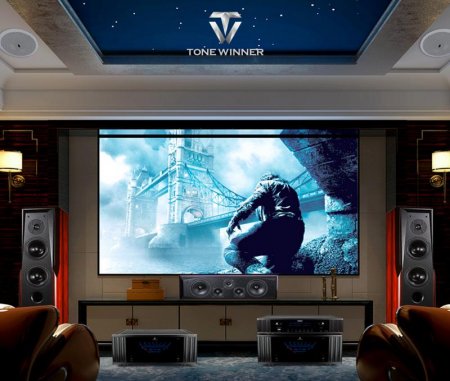

Build Your Own Home Theater

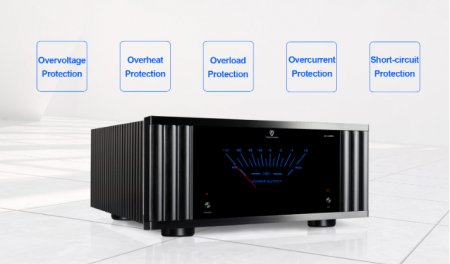

Multiple Protections

Adopts five-fold protection of overvoltage, overheating, overload, overcurrent and short circuit to ensure that the machine and the speakers are working normally.

HD Audio and Video Decoder

High-fidelity sound effects and excellent sound quality, powerful, practical and convenient High-definition decoding post-stage high-power amplifier.

Audiophile Output Interface

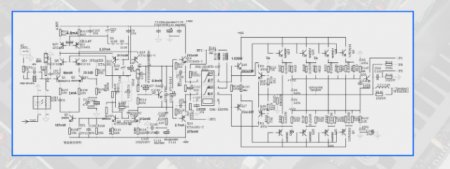

The input part of the circuit adopts optional balanced and unbalanced input, low-noise double differential amplifier circuit and mirror constant current source load, which can improve the signal-to-noise ratio of the whole machine and make it more suitable for the high sound pressure dynamic of home theater. Large, strong driving force, high slew rate, temperature compensation circuit and DC servo circuit are designed at the last stage of the circuit, and a negative feedback circuit is designed to ensure the stability of the machine.

Hi-Fi Circuit Design

It completely adopts the high-fidelity circuit structure of the independent 7-channel modular separation element power amplifier unit circuit board. The HI-FI circuit used in each channel and the process, layout, and materials used are almost the same, among which the front and left channels are exposed radiators, which are not only larger in size, but also have a larger current in the power amplifier stage due to the quiescent currents at all levels of the circuit. The technical basis of power output such as 7 channels.

High Power Transistor

3 pairs of famous ON Semiconductor NJW0302G/NJWO281G audio dedicated high-power transistors with a three-stage Darlington circuit form a push-pull output, providing a powerful power of 310W and 8 ohms per channel. The whole machine has a total of 7 channels, and 42 NJW0302G/NJW0281G high-power tubes are really powerful.

External Design

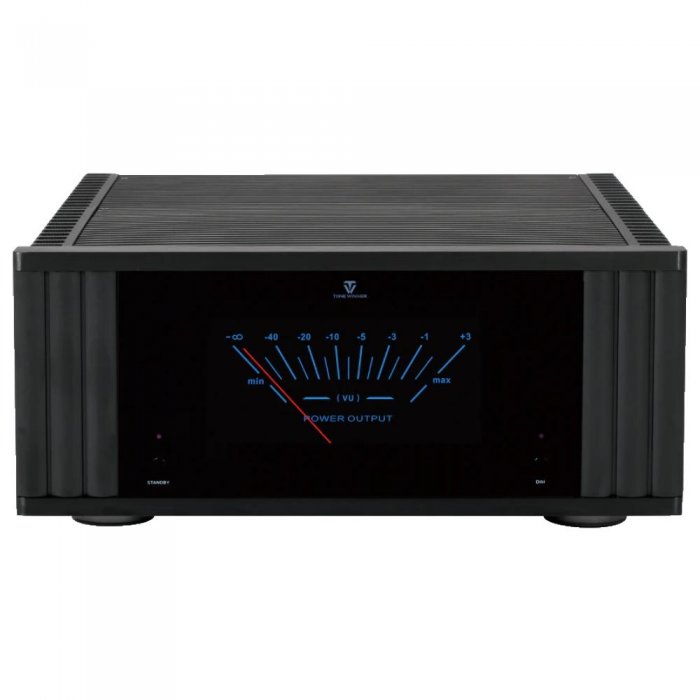

The cabinet is all black aluminium with acrylic board on the front.

The pointer voltmeter is lake-blue, indicating its beauty and elegance.

Function of 7 Channels Power Amplifier:

Features:

High power switch-mode power supply

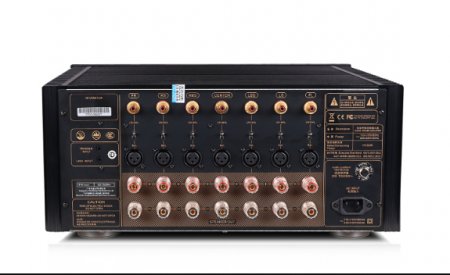

7-way unbalanced inputs and 7-way balanced inputs
Manual or trigger power on/ standby
Acrylic lake-blue ammeter
DIM control button on front panel
Trigger port on rear panel

Specifications

Specifications:

Model: AD-7300PA
Rated output power:

515W RMS(4Ω, THD=3%, 1kHz)
310W RMS(8Ω, THD=3%, 1kHz, )

Rated impedance: 8Ω
Gain: 29.5dB
THD: ≤0.09% (1kHz, normal working status)
SNR: ≥100dB (A-weighted, analog direct)
Frequency response: 20Hz-50kHz (+1/-3 dB, analog through)
Gross Weight: 26.3kg
Power supply voltage: ~110V-115V (60Hz) /~220V-230V (50Hz)
Dimension: 440x197x445mm (WxHxD)
Output power per channel:

15W RMS(4Ω, THD=3%,1kHz)
10W RMS(8Ω, THD=3%,1kHz)

Material: Aluminum alloy
Channel: 7
Accessories: manual, certificate, power cord, signal cable
