Key Digital KDX100MRX 4K HDBaseT Receiver

That’s EFLC — Entertaining Finds, Lower Checkout.

$739.99

Secure One-Page Checkout

This product is brand-new and factory sealed Key Digital KDX100MRX Available
UPC : 815996021263 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Credit
Shipping : FREE in Canada Ships in 2 to 4 Days

$123/mo suggested payments with 6 month special financing now with Flexiti.Get Instantly approved for 0% financing

Details

Features:

Tx Options: Sold a-la-carte to integrate natively with KD-X4x1WUTx wall-plate or KD-PS22UTx black box transmitters. Also integrates natively and is included with KD-UPS52U.
Soft-Codec Enabling System: USB Host + Device ports on Rx and chosen wall-plate / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X4x1WUTx / KD-PS22UTx. Rx is powered by Tx when integrated with KD-UPS52U
Audio De-embedding: Audio of the incoming source is de-embedded at the unit's analog L/R connector
ARC / eARC: Audio may be returned to the connected Tx unit (KD-PS22UTx or KD-X3x1WUTx) from the connected HDMI display or external audio inputs
CEC Manager ™: Passes through CEC control signals for monitors & projectors generated by KD-X4x1WUTx, KD-PS22UTx, or KD-UPS52U
PTZ USB Camera Integration: Marries natively with KD-CAMUSB for full PTZ control via KD-App with supported presentation switcher
KD-AMP220 Integration: Marries natively with KD-AMP220 for full volume and mic mix control with supported presentation switcher
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Signal Extension: For resolution and cable quality
4K/UHD (18G): Up to 100m / 328 ft.
1080p: Up to 150m / 492 ft.
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
HDR10: More life-like images through a greater range of luminance levels
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
RS-232: Bi-Directional control to/from Tx/Presentation Switch and Rx unit
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos
Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API
Low Profile: Super slim chassis design

Specifications

Specifications:

Technical:

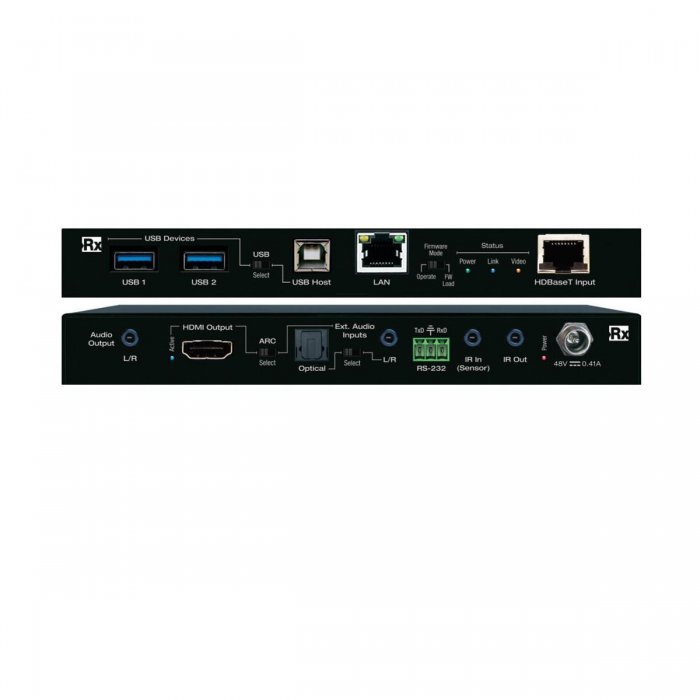

Inputs: 1 HDBaseT, 1 L/R Stereo Audio, 1 Optical Audio, 1 Bi-Directional RS-232, 1 IR
Outputs: 1 HDMI, 1 L/R Stereo Audio, 1 Bi-Directional RS-232, 1 IR
USB: USB2.0 on 2 USB A and 1 USB B connection
LAN: Shielded TCP/IP 1G/100 BaseT
DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
HDMI Connector: Type A, 19 Pin Female
Analog Audio: Line level audio on 3.5mm TRS connector
Digital Audio Output: TOSlink optical female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 96KHz
RJ45 Connector: Shielded Link Connector, HDBaseT
IR Connector: 2-pin phoenix terminal
RS-232 Connector: 3-pin phoenix terminal
Power: 48V / 1.04A, 50W

General:

Regulation: CE, RoHS, WEEE, EAC
Enclosure: Black metal
Product: 7.16 x 4.8 x 0.87" (182 x 122.5 x 22.2mm)
Weight: 1 lbs

What's in the box:

Power Supply (qty 1) 48V/1.04A, 50W, desktop type, model KDPS50W48VC
Mounting bracket (qty 2)
3-pin phoenix terminal (qty 1)
IR Sensor (qty 1)
IR Emitter (qty 1)
