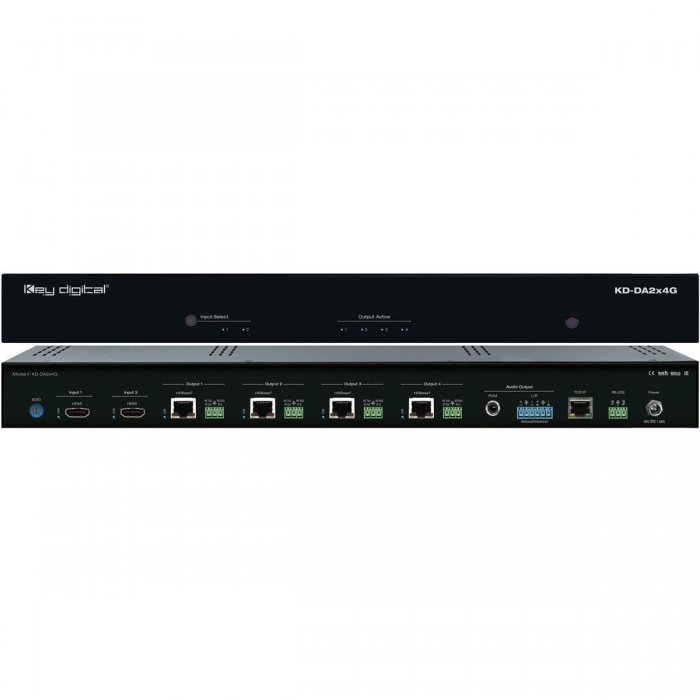

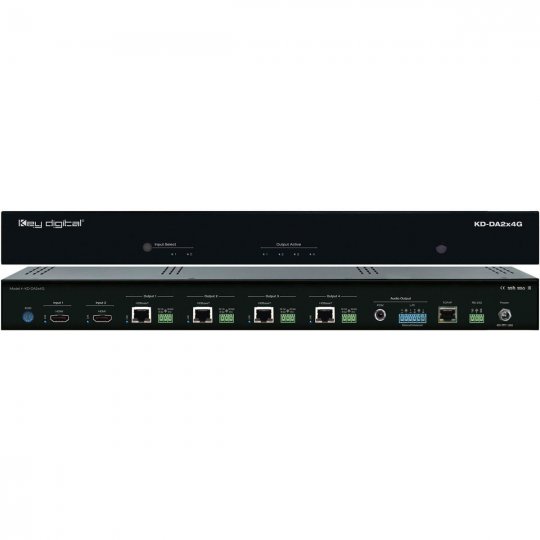

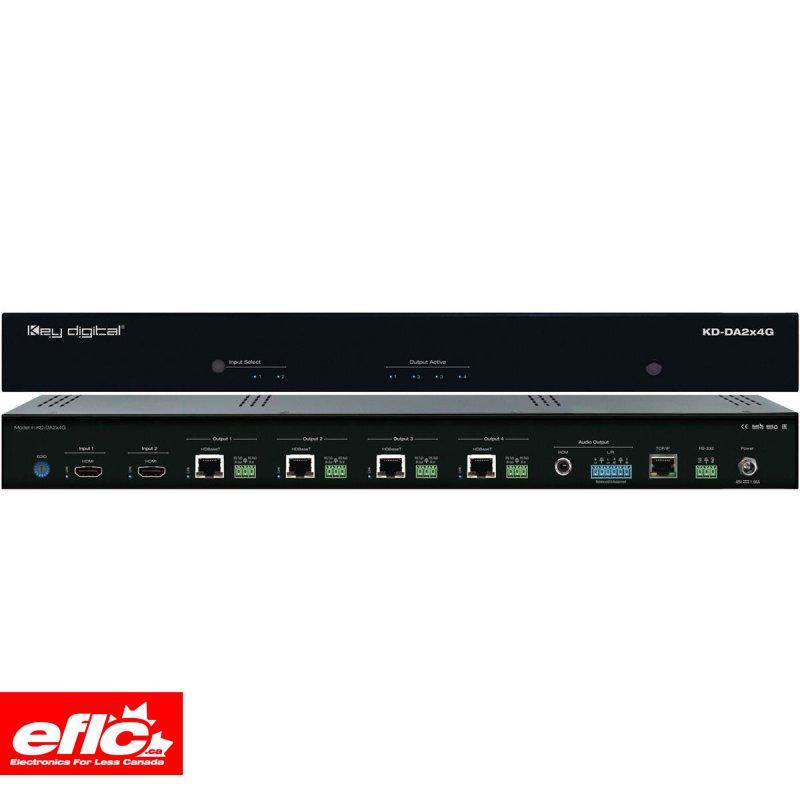

Key Digital KD-DA2X4G 2x4 4K HDMI Distribution Amplifier & Switcher Kit

Boxing Week Deals That Actually Make Sense!

$2,201.99

Secure One-Page Checkout

This product is brand-new and factory sealed Key Digital KD-DA2X4G Available
UPC : 815996020754 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships in 2 to 4 Days

$183/mo suggested payments with 12 month special financing now with Flexiti.Apply once, shop anytime with Flexiti!

Details

2x4 4K 18G POH HDBaseT HDMI Distribution Amplifier & Switcher Kit with Audio De-Embedding (Includes KIT 4 Rx Extenders 4K/70 Meters 1080P/100 Meters).

Features

Features:

HDMI Switching & Distribution: 2 HDMI sources to 4/8 HDBaseT outputs
Power over HDBaseT: All included Rx units powered by the main unit
UHD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Signal Extension: For resolution and cable quality
4K/UHD: Up to 250 ft. (76m) using CAT5e/CAT6/CAT6A/CAT7
1080p: Up to 328 ft. (100m) maximum
18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
High Dynamic Range (HDR) Format Support: HDR10 and Dolby® Vision
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
Audio De-embedder: Audio of the selected HDMI input is de-embedded at the Coax digital (PCM) and Analog L/R balanced/unbalanced connectors
Control Pass-Thru: 4/8 three pin phoenix connectors for bi-directional IR or RS-232 for each HDBaseT output. 4/8 IR sensors and IR emitters included
Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
EDID: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from an Output/Display 1
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos
CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
Control System Support: Key Digital® app ready. Key Digital Management Software ™ Pro (KDMS ™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® iOS App and Key Digital Management Software ™ Pro (KDMS ™ Pro) PC Software

Specifications

Specifications:

Technical:

Inputs (2): 1 HDMI Connector, Type A, 19 Pin Female
Outputs (4/8): 1 HDBaseT, Valens VS100 Class A, RJ45 Female
Output (1): RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz; Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 48KHz
Control Pass-Thru (Main Unit): 3-Pin Terminal Block for IR or RS-232 supporting voltage levels from +0.1V to +12V
Control (Rx Unit): IR In and Out on Phoenix Connector 5V IR sensor power. RS-232 on 3-Pin Phoenix connector
Wired IR: modulated IR signal input, 0-5V TTL or -10 to +10V
Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
Audio Bandwidth: 20Hz to 20kHz @ 0dBu
TND + Noise: 0.33% @0dBu @ 1kHz » PCM Max Input Level: 1Vpp on 75Ω, AC coupling
PCM Max Output Level: 1Vpp on 75Ω, DC coupling
DDC Communication: EDID and HDCP Bi-directional buffering to Display and Source
Wired IR: modulated IR signal input, 0-5V TTL or -10to +10V
Power: +48V/1.66A, 80W

General:

Regulation: CE, RoHS, WEEE, EAC
Rack Mount: 1U, 1 Rack Width (rack ears included)
Enclosure: Black Metal
Product Dimensions: 17.3 x 5.25 x 1.72" (440 x 133.5 x 43.8 mm)
Product Weight: 6 lb

What's in the box:

Power Supply (qty 1) 48V/1.66A, 80W, desktop type, model KDSP80W48VC
Rack ears and screws
KD-RMSWPROK remote control
Qty 4/8 IR Emitters
Qty 4/8 IR Sensors
Qty 5/9 3-pin terminal blocks for IR/RS-232
6-pin terminal block for analog audio
Quick Setup Guide
