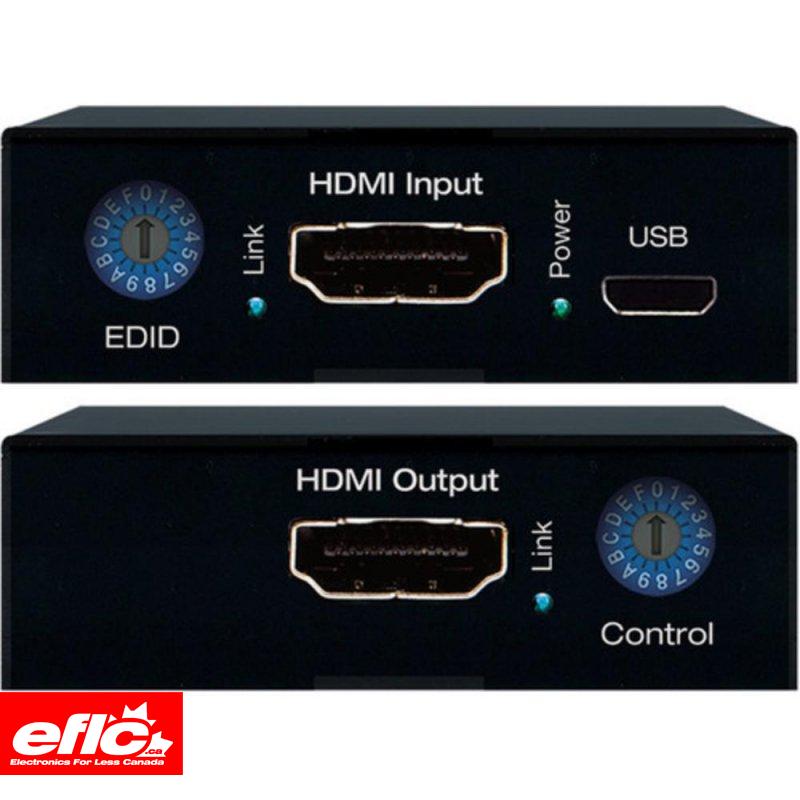

Key Digital KD-FIX418A 4K/18G HDMI Fixer

That’s EFLC — Entertaining Finds, Lower Checkout.

$369.99

Secure One-Page Checkout

Key Digital Authorised

This product is brand-new and factory sealed Key Digital KD-FIX418A Available
UPC : 815996021041 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships in 2 to 4 Days

$123/mo suggested payments with 3 month special financing now with Flexiti.Get Instantly approved for 0% financing

Details

Features:

HDMI Correction: Resolves common HDMI integration obstacles related to Hot Plug Detection, EDID handshaking, HDCP authentication, and bandwidth
Audio De-embedding: HDMI input audio is de-embedded on an analog 3.5mm stereo and digital PCM connector
18G Down-Convert: Incoming 18Gbps bandwidth HDMI signals may be downconverted for integration with existing 10.2Gbps systems/infrastructure
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, Hot Plug management, and EDID control handshake
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby Atmos
ARC Pass-thru: From connected ARC supported display to connected ARC supported HDMI source
CEC Pass-thru: From connected display to selected HDMI source
Control: RS-232 control and connectivity status

Specifications

Specifications:

Technical:

HDMI Input (Each): HDMI Connector, Type A, 19 Pin Female
HDMI Output: HDMI Connector, Type A, 19 Pin Female
HDMI Bandwidth: TMDS bandwidth 18Gbps
DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
3.5mm Stereo Audio Output: Line level audio on TRS connector. Drives 1 VRMS line audio output with a sampling rate of 48kHz
Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
Digital PCM Audio Output: RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
PCM Max Output Level: 1Vpp on 75Ω, DC coupling
Audio Bandwidth: 20Hz to 20kHz @ 0dBu
TND + Noise: 0.33% @0dBu @ 1kHz
PCM Max Input Level: 1Vpp on 75Ω, AC coupling
Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

Regulation: CE, RoHS, WEEE, EAC
Enclosure: Black metal
Power Supply: USB to micro USB cable (power adapter not included)
Product: 2.17" x 3.085" x 0.68"
Weight: 4 oz

What's in the box:

Power Supply (qty 1) 5V/1A, 5W, wall type
Mounting: 2x L-bracket

Key Digital KD-FIX418A 4K/18G HDMI Fixer Shipping : FREE in Canada
In Stock
Now $369.99

Electronics for less is a pleasure to deal with, we are customers now for many years. Fiio k13 DAC is a stellar product, music comes alive in NOS mode.

Posted 12/19/2025 By: sharond28235251

I didn't know about Electronics For Less Canada? Fast service, super-strong packaging, and above all, a very competitive price. I recommend it.

Posted 10/27/2025 By: liva2982592109

Helpful staff, went the distance to confirm product availability. Delivered as promised.

Posted 10/16/2025 By: donwhiteford

I purchased a home theater receiver and subwoofer from Electronics for Less and the quality of the products is excellent. They both sound clear and crisp in my home theater setup and we're extremel...

Posted 10/10/2025 By: davesteinfeld

order on Thursday morning received the next day afternoon that's what I call a fast delivery

Posted 09/25/2025 By: realdesfosses

Order and delivery experience was seamless and timely. DAP was well packed and arrived on scheduled time undamaged. Price was very competitive and EFL provided a discount coupon. I would note that...

Posted 09/23/2025 By: brian1268496376

I have ordered 3 times from Electronics For Less Canada and I have received excellent customer service with great prices each time. I highly recommend buying from EFLC if you want a great selectio...

Posted 09/19/2025 By: rounder45

Great product! Even better service! Will definitely be purchasing from electronicsforless in the near future! Keep those discounts coming!!! :)

Posted 07/15/2025 By: DannoManno

Over the years I?ve made multiple purchases from EFLC, culminating in six SVS subs. From start to finish they?ve always taken care of me, and they offer the best discounts in Canada. Their custome...

Posted 07/14/2025 By: Reviewer175123200

Exactly what i see! Good product, good Price.

Posted 07/11/2025 By: Reviewer2630578141

ITEM
WATCH

Key Digital KD-FIX418A 4K/18G HDMI Fixer

Ask an Expert

Features:

HDMI Correction: Resolves common HDMI integration obstacles related to Hot Plug Detection, EDID handshaking, HDCP authentication, and bandwidth
Audio De-embedding: HDMI input audio is de-embedded on an analog 3.5mm stereo and digital PCM connector
18G Down-Convert: Incoming 18Gbps bandwidth HDMI signals may be downconverted for integration with existing 10.2Gbps systems/infrastructure
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, Hot Plug management, and EDID control handshake
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby Atmos
ARC Pass-thru: From connected ARC supported display to connected ARC supported HDMI source
CEC Pass-thru: From connected display to selected HDMI source
Control: RS-232 control and connectivity status

Specifications:

Technical:

HDMI Input (Each): HDMI Connector, Type A, 19 Pin Female
HDMI Output: HDMI Connector, Type A, 19 Pin Female
HDMI Bandwidth: TMDS bandwidth 18Gbps
DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
3.5mm Stereo Audio Output: Line level audio on TRS connector. Drives 1 VRMS line audio output with a sampling rate of 48kHz
Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
Digital PCM Audio Output: RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
PCM Max Output Level: 1Vpp on 75Ω, DC coupling
Audio Bandwidth: 20Hz to 20kHz @ 0dBu
TND + Noise: 0.33% @0dBu @ 1kHz
PCM Max Input Level: 1Vpp on 75Ω, AC coupling
Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

Regulation: CE, RoHS, WEEE, EAC
Enclosure: Black metal
Power Supply: USB to micro USB cable (power adapter not included)
Product: 2.17" x 3.085" x 0.68"
Weight: 4 oz

What's in the box:

Power Supply (qty 1) 5V/1A, 5W, wall type
Mounting: 2x L-bracket
