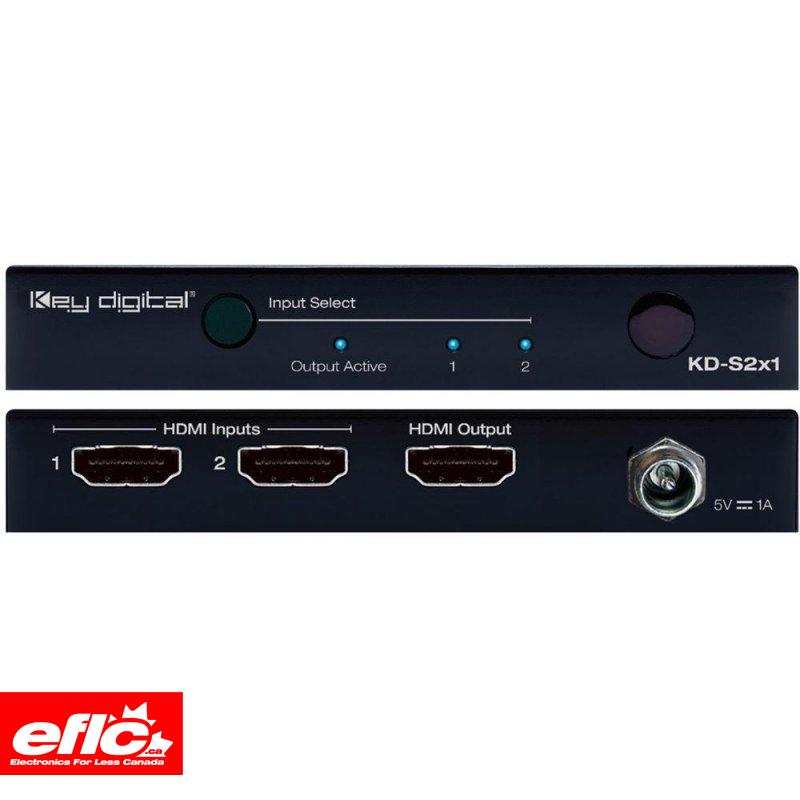

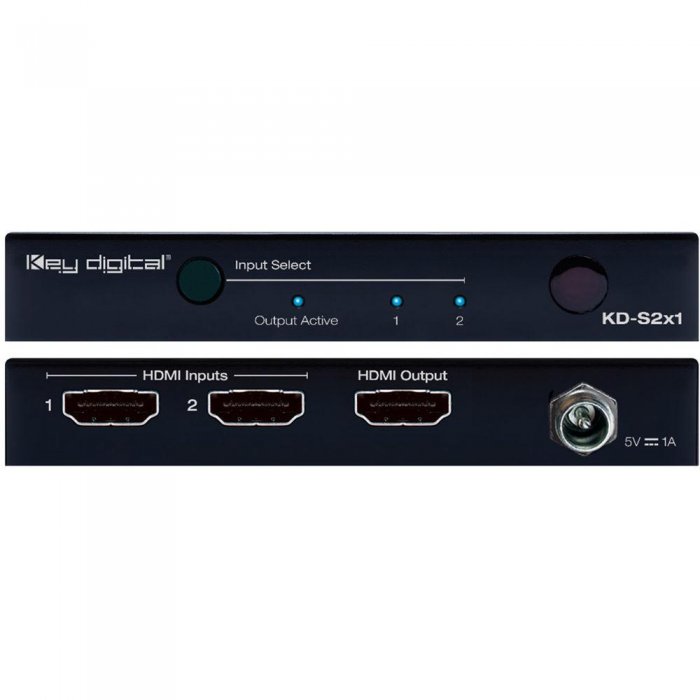

Key Digital KDS2X1 2x1 4K HDMI Switcher

That’s EFLC — Entertaining Finds, Lower Checkout.

$166.99

Secure One-Page Checkout

Key Digital Authorised

This product is brand-new and factory sealed Key Digital KDS2X1 Available
UPC : 815996020136 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships in 2 to 4 Days

$56/mo suggested payments with 3 month special financing now with Flexiti.Apply once, shop anytime with Flexiti!

Details

Features:

Digital Switching: 2 HDMI Sources to 1 HDMI Display
Resolution Support: SD, HD, and VESA up to UHD/4K
18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
HDCP 2.2 and HDMI Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies
Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
3D Ready: Capability to pass 3D stereoscopic signal formats
EDID Control: Internal library with 16 default EDID configurations for each input, including native EDID data of Output/Display
Full Buffer ™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos and DTS-HD Master Audio ™
Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
I2C Communication: EDID and HDCP buffering from Display to Source
Control: Front panel push buttons and LEDs, Optical IR
CEC: Full Support
Control System Support: Compass Control® Pro ready. Fully controllable by all IR supported control systems.

Specifications

Specifications:

Technical:

Input (Each): HDMI Connector, Type A, 19 Pin Female
Output: HDMI Connector, Type A, 19 Pin Female
Bandwidth: TMDS bandwidth 18 Gb/s
DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

Regulation: CE, RoHS, WEEE
Enclosure: Black Metal
Product Dimensions: KDS2X1 - 4.3" x 1.1" x 2.8"
Product Weight: KDS2X1 - 0.5 lb

What's in the box:

Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V1ASC
Mounting Brackets
IR Remote
