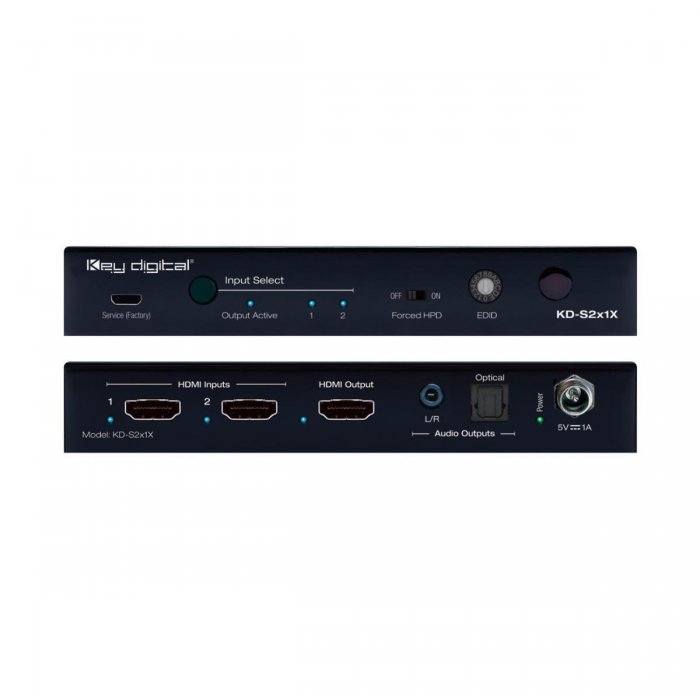

Key Digital KDS2X1X 2x1 4K HDMI Switcher

That’s EFLC — Entertaining Finds, Lower Checkout.

$215.99

Secure One-Page Checkout

Key Digital Authorised

This product is brand-new and factory sealed Key Digital KDS2X1X Low Stock : Order Soon
UPC : 815996021027 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back Curbside pick up available in Richmond Hill, Ontario.

Free Shipping
Express Shipping

Order Now : Ships Wed
Standard Canada-Wide Free Shipping

$72/mo suggested payments with 3 month special financing now with Flexiti.Get Instantly approved for 0% financing

Details

Features:

HDMI Switching: 2/4 HDMI sources to 1 HDMI output/display
Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos
CEC Pass-thru: From connected display to selected HDMI source
Control: Front panel buttons/LEDs, Optical IR
Control System Support: Compass Control® Pro ready. Fully controllable by all IR supported control systems

Specifications

Specifications:

Technical:

Input (Each): HDMI Connector, Type A, 19 Pin Female
Output: HDMI Connector, Type A, 19 Pin Female
Bandwidth: TMDS bandwidth 18 Gb/s
DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

Regulation: CE, RoHS, WEEE
Enclosure: Black Metal
Product Dimensions: KD-S2x1X - 4.3" x 1.1" x 2.8"
Product Weight: KD-S2x1X - 0.5 lb

What's in the box:

Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V1ASC
Mounting Brackets: 2 L-shaped
IR Remote: KDRMSWPROK
