Klipsch IC500TSCW Shallow 4" 70 Volt In-Ceiling Speaker WHITE

That’s EFLC — Entertaining Finds, Lower Checkout.

Call for Price

Secure One-Page Checkout
Klipsch Authorised
This product is brand-new and factory sealed Klipsch IC500TSCW  Available
UPC : 743878029819  5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships out in 2 Days


To purchase now by phone, call toll-free 1 888 248 4969.



$83/mo suggested payments with 6 month special financing now with Flexiti.Get approved for financing in under 3 minutes


Details

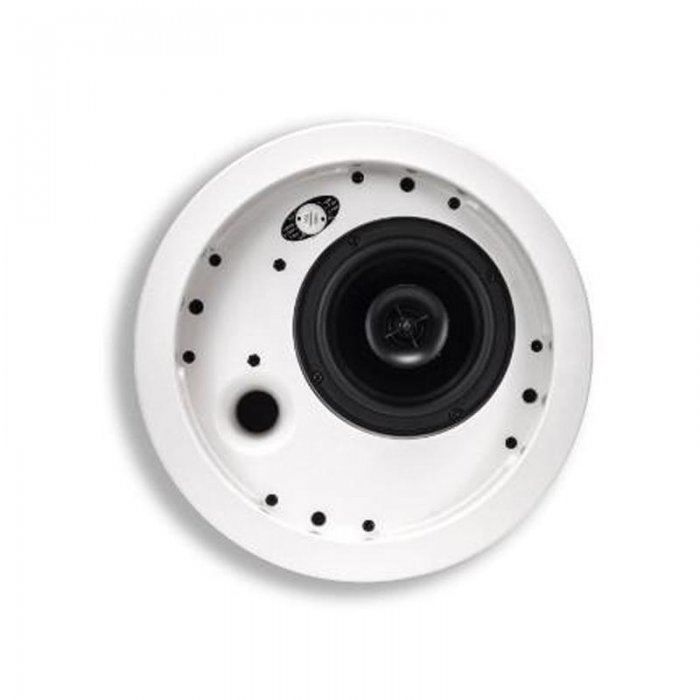

At just over 4" deep, the all-new IC-500-T-SC packs proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and UL-1480 certified in-ceiling loudspeaker with an integrated back can and multi-tap transformer.

Features:

  • Shallow 4.125" depth
  • Includes 15 watt 70/100 volt multitap transformer
  • 70V, 100V, or 8 ohm operation selectable via front baffle switch.
  • Tractrix port design for deep bass with less compression
  • Tractrix horn tweeter for smooth on and off axis performance
  • Designed to mix and match with Klipsch CA speakers
  • Includes grille, backcan, tile-bridge, and cut-out template for easy installation

Specifications

Specifications:

  • Frequency Response1: (+/- 4 dB) 95 Hz - 20 kHz
  • Power Handling2: 50 watts (14.5V) 200 watts peak
  • Maximum SPL3: 101 dB Continuous 107 dB Peak
  • Sensitivity4: 87 dB
  • Coverage Angle: 80º
  • Directivity Index (DI): 8 dB
  • Directivity Factor (Q): 6.3
  • Nominal Impedance: (IN 8 OHM BYPASS MODE) 8 ohms 4.2 ohm minimum
  • Components: One 5" (12.7cm) woofer 1" (2.54cm) Titanium diaphragm compression driver
  • Input Connection: Terminal Strip
  • Tap Settings 70V: 15w, 7.5w, 3.8w, 1.9w 100V: 15w, 7.5w, 3.8w
  • Enclosure Type: Bass-reflex via Tractrix port
  • Safety Agency Rating: UL-1480, UL-2043
  • Wire Gauge Accommodated: 14 AWG
  • Cutout Dimensions: 9.125" (23.2cm) diameter
  • Mounting Depth: 4.125" (10.5cm)
  • Overall Depth: 4.375" (11.1cm)
  • Overall Width: 10.75" (27.3cm) diameter
  • Thru Hole Width: 9" (22.8cm)
  • Weight: 5.5 lbs. (2.5kg)
  • Finishes: White/Paintable
  • Accessories: Mud Ring Kit (PN: 1010413)
