Key Digital KDX444S 4K/18G HDMI/HDBaseT Extender Kit Canada : EFLC.ca (KDX444S)

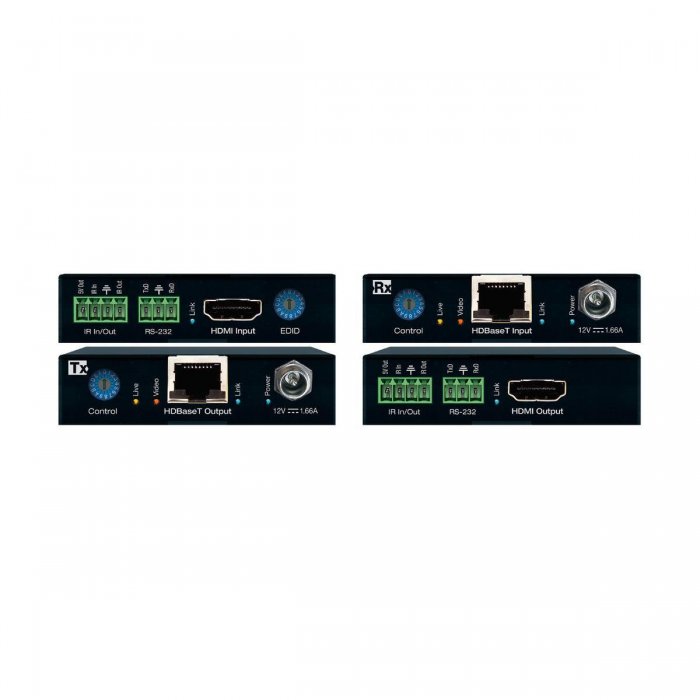

Key Digital KDX444S 4K/18G HDMI/HDBaseT Extender Kit

That’s EFLC — Entertaining Finds, Lower Checkout.

$499.99

Secure One-Page Checkout

This product is brand-new and factory sealed Key Digital KDX444S Low Stock : Order Soon
UPC : 815996020709 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back Curbside pick up available in Richmond Hill, Ontario.

Free Shipping
Express Shipping

Order Now : Ships Wed
Standard Canada-Wide Free Shipping

$83/mo suggested payments with 6 month special financing now with Flexiti.Get Instantly approved for 0% financing

Details

Features:

HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length
4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Flexible Power over HDBaseT: Only one power connection needed. Tx may power Rx, or Rx may power Tx.
Low Profile: Super slim chassis design
Signal Extension: For resolution and cable quality
4K/UHD: Up to 130 ft. (40m) using CAT5e/6
1080p: Up to 230 ft. (70m) maximum (Valens VS10)
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant+
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
EDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to Rx
Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input and output devices
Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug Detection control
IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
CEC Pass-thru: For inter-device control between input and output HDMI channel

Specifications

Specifications:

Technical:

Inputs Tx (Each): 1 HDMI, 1 IR, 1 RS-232
Outputs Tx (Each): 1 HDBaseT, 1 IR, 1 RS-232
Inputs Rx (Each): 1 HDBaseT, 1 IR, 1 RS-232
Outputs Rx (Each): 1 HDMI, 1 IR, 1 RS-232
Bandwidth: TMDS bandwidth 18Gbps
Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits per color
DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source
HDMI Connector: Type A, 19 Pin Female
RJ45 Connector: Shielded Link Connector, HDBaseT
IR Connector: 4-pin Phoenix
RS-232 Connector: 3-pin Phoenix
Power: (1) 12V/1.66A, 20W DC Power Supply (Screw-In Type). 100-240VAC, 50-60Hz. Interchangeable transformer plug with screw-in connector. SKU: KD-PS20W12VQ

General:

Regulation: CE, RoHS, WEEE, EAC
Enclosure: Black Metal
Product (Each): 4.1"x 2.8"x 0.875""
Weight: 0.75 lbs

What's in the box:

Power Supply (qty 1) 12V/1.66A, 20W, desktop type, model KDSP20W12VC
Mounting Brackets (qty 4)
IR Emitter (qty 1)
IR Sensor (qty 1)
3-pin Phoenix Connector (qty 2)
4-pin Phoenix Connector (qty 2)
