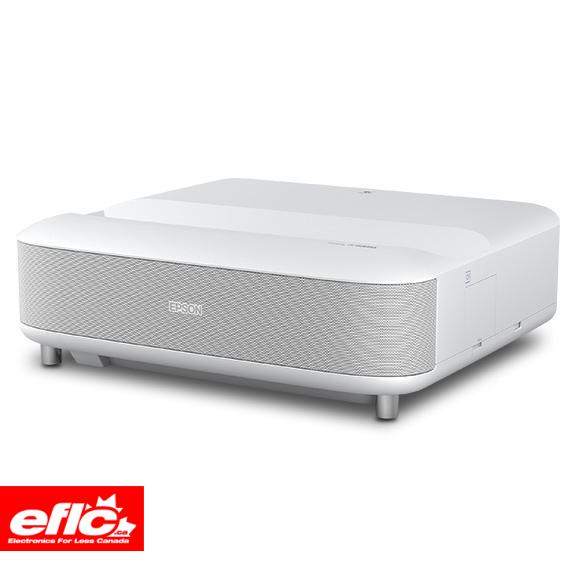

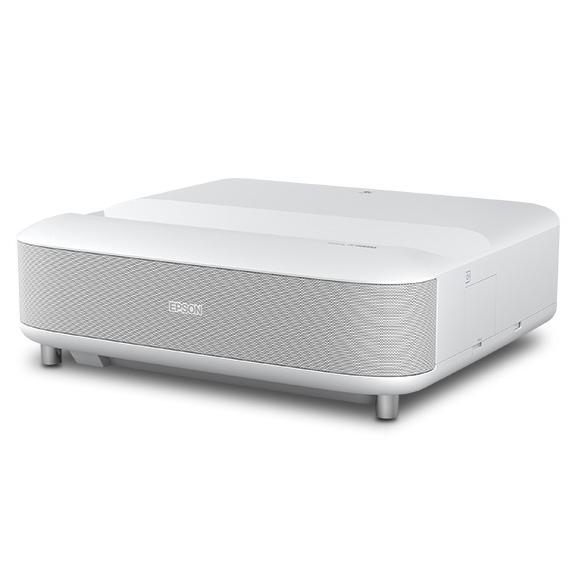

Ultra Short Throw 3-Chip 3LCD - The Epic Entertainment Experience.

• Immersive Entertainment — Even in Small Spaces — Place the projector close to the wall and enjoy incredible 4K PRO-UHD1 images up to 120"
• Designed for Your Living Room — True 3-chip 3LCD technology delivers 3,600 lumens of color and white brightness2 for clear, colorful images, even in brightly lit rooms
• Exceptionally Sharp 4K Experience — 4K PRO-UHD1 uses advanced pixel-shifting technology and image processing to deliver amazing detail and clarity without sacrificing picture brightness
• Hassle-Free Setup — Available for both iOS® and AndroidTM devices, the Epson® Setting Assistant app3 makes it easy to set up the projector and adjust display size in seconds
• Smart TV Capability — Watch all your favorite streaming4 channels including Amazon Prime Video®, Hulu®, Disney+®, HBO®, YouTubeTM and more4; even stream live TV with apps like YouTube TVTM using the latest Android TV®4 interface and a simple-to-use remote including voice search with built-in Google AssistantTM
• Amazing Built-In Sound by Yamaha — Built-in 2.1 virtual surround system designed by Yamaha exclusively for Epson creates an immersive sound performance with presets for TV, Sports, Movies and Music; connect your smartphone via Bluetooth® to use as a standalone speaker
• Single-Cable Solution for Audio — One of the updated HDMI® ports includes eARC5 support to transmit audio formats like Dolby Atmos® or DTS to compatible A/V receivers or soundbars; makes it easy to switch audio between the projector’s built-in speakers and other external audio devices

Specifications

• Projection System: Epson 3-chip 3LCD technology (ultra short throw)
• Smart TV Operating System: Included Android TV⁴
• Projection Method: Tabletop Front Facing
• Projector Color: Black or White
• Driving Method: Poly-Silicon TFT Active Matrix
• Maximum Resolution: 3840 x 2160
• Native Panel Resolution: 1080p (4KE)¹
• Native Aspect Ratio: 16:9 widescreen
• Focus Control: Precision Manual Slider
• Refresh Rate: Up to 1080p 60Hz
• Color Brightness (Color Light Output²): 3,600 lumens (Color Mode: Dynamic, Light Output: 100%, Zoom: N/A, Dynamic Contrast: Off)
• White Brightness (White Light Output²): 3,600 lumens (Color Mode: Dynamic, Light Output: 100%, Zoom: N/A, Dynamic Contrast: Off)
• Dynamic Contrast Ratio: Over 2,500,000:1 (Color Mode: Dynamic; Consumption: Normal; Zoom: Wide)
• Color Reproduction: Full 10-bit (up to 1.07 billion colors)
• Supported Picture Sizes: 60" to 120"
• Throw Ratio Range: 0.26 (Zoom: Wide), 0.41 (Zoom: Tele)
• High Dynamic Range: HLG and Full 10-bit HDR
• Digital Color Processing: Real-time 10-bit analog-to-digital
• Light Source: Laser diode
• Dynamic Laser Life: Up to 20,000 hours (Power Consumption: Normal)
• Projection Lens Type: Manual focus
• Projection Lens F-Number: 1.6
• Projection Lens Focal Length: 3.7 mm
• Built-In Audio: Yamaha DSP 2.1; two full-range 5 W speakers and one 10 W subwoofer (20 W total)
• Operating Temperature: 41 °F to 95 °F (5 °C to 30 °C)
• Power Supply Voltage: 100 V AC – 240 V AC ± 10%, 50/60 Hz
• Power Consumption:
  • Normal mode: 278 W
  • Medium mode: 244 W
  • ECO mode: 186 W
• Network Standby: 2.0 W
• Energy Saving: 0.5 W
• Fan Noise:
  • Normal Mode: 36 dBA
  • Eco Mode: 23 dBA
• Interfaces:
  • HDMI: 2x 2.0 (18 Gbps/HDCP 2.3) (1 eARC)
  • Audio Out: 1x S/PDIF Optical
  • USB Type A: 3x (2x for data, 1x for 5 V/2 A power supply)
  • USB Type B: 1x (for service only)
• Built-In Android TV⁴:
  • Wireless: 2.4 GHz and 5 GHz IEEE 802.11 a/b/g/n/ac
  • Bluetooth: 5.1 Class 2
• Dimensions (W x D x H) Including Feet: 18.4" x 15.7" x 6.2"
• Weight: 16.3 lb
• Remote Control:
  • Infrared Receiver Features: Front/Rear: 19.7' (6 m)
  • Operating Angle: Rear: Left/Right: ±30 degrees, Upper/Lower: ±15 degrees
• Eco Features:
  • RoHS compliant
  • End-of-life options available⁷
  • Epson America, Inc. is a SmartWay® Transport Partner⁸

Support

Epson ConnectionSM

Warranty

2-year projector limited warranty

What’s Included

• Epson EpiqVision Ultra LS650
• Power cable
• Projector remote control
• Batteries
• Quick setup guide
