Introducing a new generation of compact and efficient high-lumen projection from Epson.

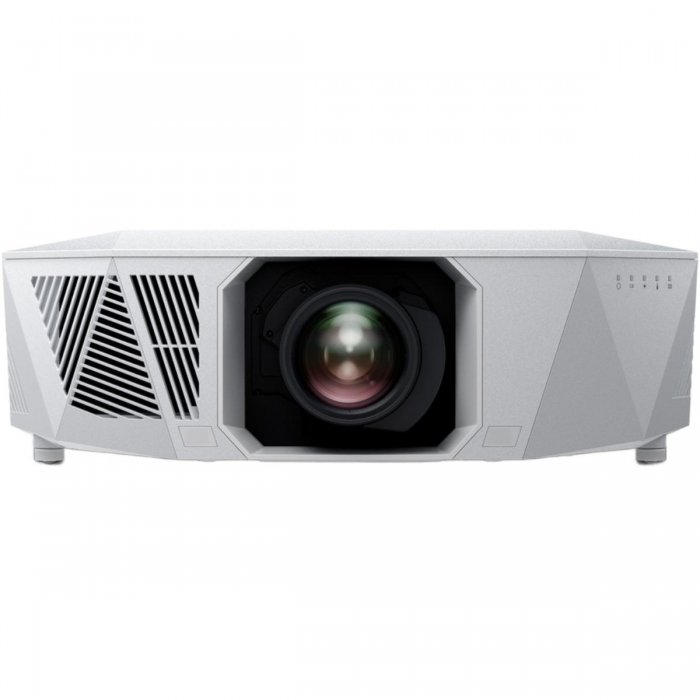

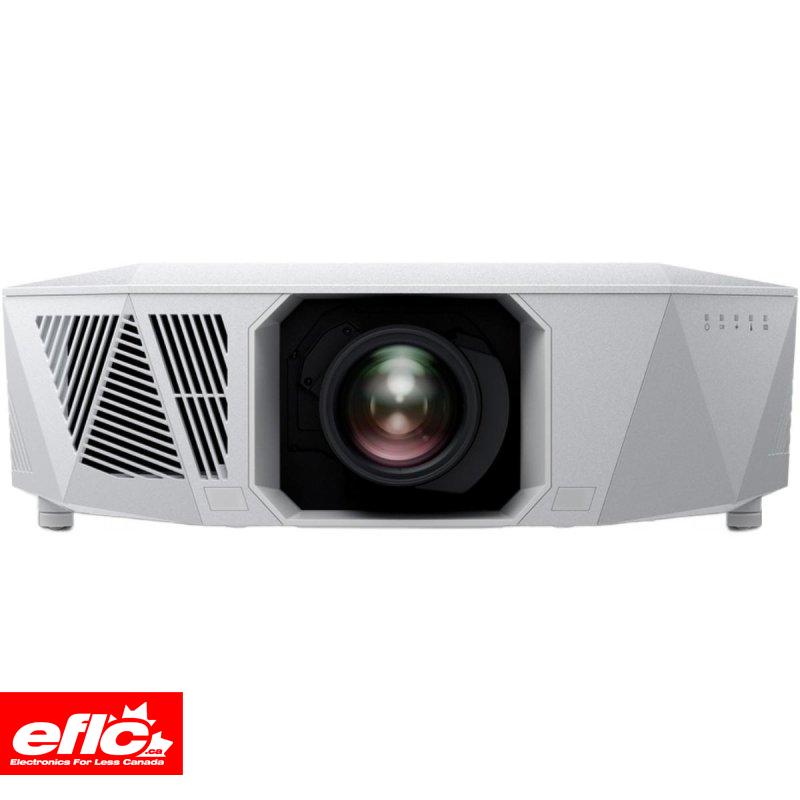

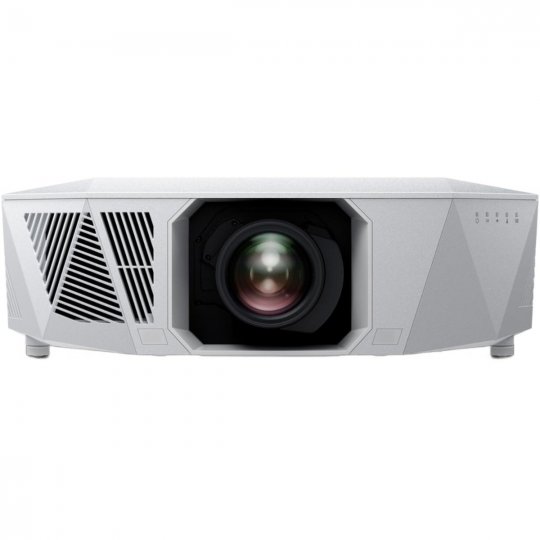

The all-new QL7000 4K 3LCD Laser Projector with HDR.

Developed specifically for creating immersive big screen entertainment experiences with an unprecedented level of picture brightness, color and detail, the Epson QL7000 produces a stunning 4K HDR picture up to 300".

Perfect for today's active multipurpose and dedicated entertainment spaces, the Epson QL7000 cuts through ambient light with up to 10,000 lumens1 of color brightness (IDMS rated) and up to 10,000 lumens of white brightness (ISO rated)2.

Incorporating our most advanced projection technologies to date, the QL7000 combines proprietary 4K Display Technology3 with HDR104 and our true 3-chip 3LCD thermal-controlled and Double Micro-Lens Array technologies to produce a full 8.29 million pixels on-screen-resulting in a picture with stunning clarity and color brightness.

And like all Epson QL-Series projectors, the QL7000 comes as "Body Only"-without a lens-giving you the option to use our entire family of high-precision Epson lenses to design an optimal projection solution for virtually any application.

Epson continues to set the industry benchmark for projection picture quality. And with the all-new QL-Series generation of high-lumen 4K HDR projectors, Epson has once again reset expectations for big screen entertainment.

Stunning Picture Quality

4K Display Technology3 with HDR104 produces a full 8.29 million pixels on-screen for an exceptionally clear 4K UHD experience.

Immersive Big Screen Entertainment

Up to 10,000 lumens1 of color brightness (IDMS rated) and up to 10,000 lumens of white brightness (ISO rated)2 produce an immersive picture up to 300" in a variety of lighting environments.

Exceptional Color Brightness

True 3-chip 3LCD and Double Micro-Lens Array technologies deliver exceptionally bright color, significantly improving the performance of HDR104 content.

Impressive HDR

Full 10-bit HDR color processing accepts 100% of the HDR source information to faithfully reproduce HDR, HDR104 and HLG (Hybrid Log Gamma) content for an exceptional visual performance. Dynamic Tone Mapping automatically adjusts to the optimal HDR level according to the scene.

Powerful Picture Processing

Proprietary 32-bit QZX Picture Processor handles real-time color, contrast, frame interpolation and dynamic tone mapping to faithfully reproduce content with exceptional picture detail and black contrast.

Flexible Lens Options

Compatible with a wide range of powered Epson Precision Lenses, including short and long throw options, to maximize installation flexibility.

• High Frame Rate Support - Supports gaming up to 4K HDR at 120 Hz; Auto Low Latency Mode helps minimize input lag and advanced frame interpolation optimizes content below 120 Hz
• Enhanced Connectivity - Dual 40 Gbps HDMI® 2.1 ports support up to 120 Hz at 4:2:2 in 8-, 10- and 12-bit color modes, including 10- and 12-bit "Deep Color" signals
• Smart Home Control - Easily integrates into home automation and remote monitoring systems, including Control4® and Crestron® control systems
• Virtually Maintenance-Free - 20,000-hour solid-state laser light source5 with an advanced vapor-cooled thermal transfer design provides instant Power-On with no bulbs to be replaced
• Outstanding Service & Support - Includes a 3-year limited warranty with full-unit replacement and free technical phone support for the life of the product
• ISF® Certified - The Imaging Science Foundation has been setting standards for the display industry since 1994 and has been dedicated to improving the quality of electronic imaging. Epson shares this passion for image quality and has developed technologies to allow an ISF Certified Technician to professionally calibrate the Epson QL7000 projector to the highest level of image

Eco Features:

• RoHS compliant
• End-of-life options available4
• Epson America, Inc. is a SmartWay® Transport Partner7

Specifications:

• Projection System: Epson 3LCD
• Chip Design (Architecture): 3-chip
• Light Source: True Laser Diode Array
• Projection Method: Front, Front-Ceiling, Rear, Rear-Ceiling
• Product Color: Black or White
• Driving Method: Poly-Silicon TFT Active Matrix, 1.04" wide panel with Double Micro-Lens Array, 12-bit
• Output Resolution: 4K Display Technology (3840 x 2160, dual-axis: 1920 x 1080)
• Maximum Input Resolution: 4096 x 2160
• Maximum Refresh Rate: 120 Hz
• Supported Resolutions: 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
• Native Aspect Ratio: 16:9 widescreen
• Resize Aspect Ratio Support: 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 9:6 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Modes
• Color Brightness: 10,000 lumens (IDMS Rated)
• White Brightness: 10,000 lumens (ISO Rated)
• Contrast Ratio: Up to and over 5,000,000:1, with Dynamic Contrast in Normal or High Speed setting
• White Balance: Color temp is between 3,200K ~ 10,000K
• Color Reproduction: Full-color (up to 1.07 billion colors)
• Size (Projected Distance): 60" to 300", based on attached Epson High Precision Lens
• Keystone Correction: Vertical/Horizontal: ± 30 degrees
• HDR Color Processing: Full 10-bit
• Epson QZX Picture Processor: Full 12-bit
• Light Source Life:
• Normal Mode: Up to 20,000 hours
• Medium Mode: Up to 20,000 hours
• Eco Mode: Up to 20,000 hours

Standard Projection Lens (Sold Separately):

• Standard Lens: ELPLM15 (sold separately)
• Type: Powered shift/focus/zoom
• F-Number: 1.8 - 2.3
• Focal Length: 36.0 mm - 57.4 mm
• Zoom Ratio: Optical Zoom: 1.0 - 1.6
• Throw Ratio Range: 1.52 - 2.47
• Lens Shift:
  • Vertical: -64 % to +64 %
  • Horizontal: -16 % to +16 %

Other Features:

• Dynamic Range Support: HDR10, HLG
• HDR Adjustment: 16 steps, real-time
• Color Modes: Dynamic, Vivid, Cinema, Natural
• Aspect Adjustment: Yes (Auto/Full/Zoom/Anamorphic Wide/Horizontal Squeeze)
• Anamorphic Lens Option: Compatible with third-party options; Anamorphic Lens Kit sold separately
• Frame Interpolation: Input up to 4K at 60 Hz, output up to 4K at 120 Hz
• Operating Temperature: 41 °F to 95 °F (5 °C to 35 °C)
• Power Supply Voltage: 100 - 240 V AC ± 10%, 50/60 Hz
• Power Consumption:
  • Normal Mode: 636 W
  • Quiet/Extended Mode: 328 W
  • Network Standby: 2.0 W
  • Energy Saving: 0.5 W
• Fan Noise:
• Normal Mode: 33 dB
• b>Quiet Mode: 26 dB
• Security: Kensington® security lock port

Dimensions (W x D x H):

• Projector, Including Feet: 22.8" x 7.5" x 22.4"
• Weight: 46.5 lb

Remote Control:

• Features: Front, Ceiling, Rear Front and Ceiling
• Operating Distance: 32 ft (10 m)
• Operating Angle:
• Front Right/Left: ± 60 degrees
• Upper/Lower: +30 to -20 degrees
• Rear Right/Left: ± 30 degrees
• Upper/Lower: +50 to +10 degrees
