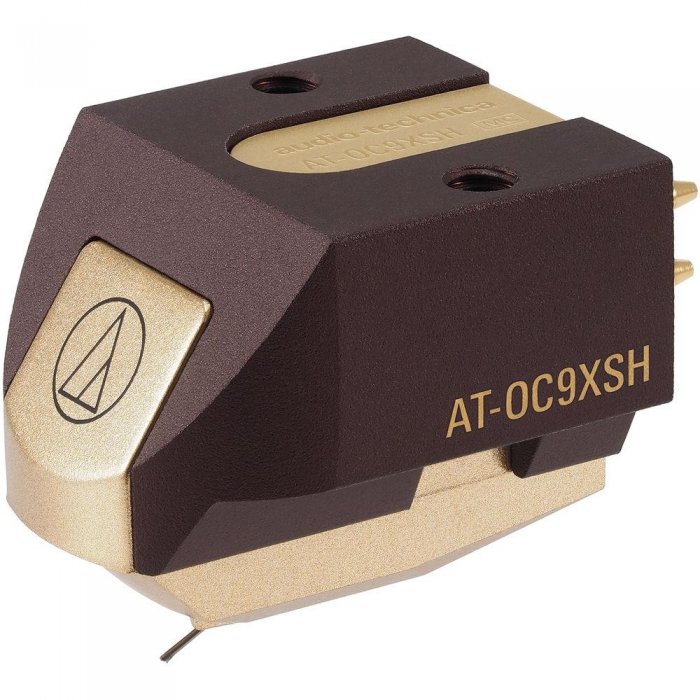

Audio-Technica AT-OC9XSH Dual Moving Coil Cartridge

That’s EFLC — Entertaining Finds, Lower Checkout.

$949.00

Secure One-Page Checkout

Audio-Technica Authorised

This product is brand-new and factory sealed Audio-Technica AT-OC9XSH Special Order
EAN : 4961310150419 5% Price Promise
Warranty : 1yr Manufacturer Special Order Return Policy
Shipping : FREE in Canada Shipped when Received

Out of Stock

$105/mo suggested payments with 9 month special financing now with Flexiti.Get Instantly approved for 0% financing

Details

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws - no nuts required.

Features:

Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation
The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws - no nuts required
Features nude Shibata stylus and boron cantilever for rich full-range audio reproduction and high transient response
A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer

Specifications

Specifications:

Type: Dual Moving Coil
Body Material: Aluminum
Frequency Response: 20-47,000 Hz
Channel Separation: 27 dB (1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 25 mH (1 kHz)
Output: 0.4 mV (at 1 kHz, 5 cm/sec)
Channel Balance: 1.0 dB (1 kHz)
Stylus Shape: Shibata
Stylus Type: Nude square shank
Stylus Curvature Radius: 2.7 x 0.26 mil
Cantilever: 0.28 mm diameter nude boron
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
Wire Used for Coil: PCOCC
Terminal Pins: Brass
Mount: Half-inch
Weight: 7.6 g (0.3 oz)
Dimensions: 17.3 mm (0.68") H x 16.8 mm (0.66") W x 25.7 mm (1.01") D
Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm x 2, 8 mm x 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
