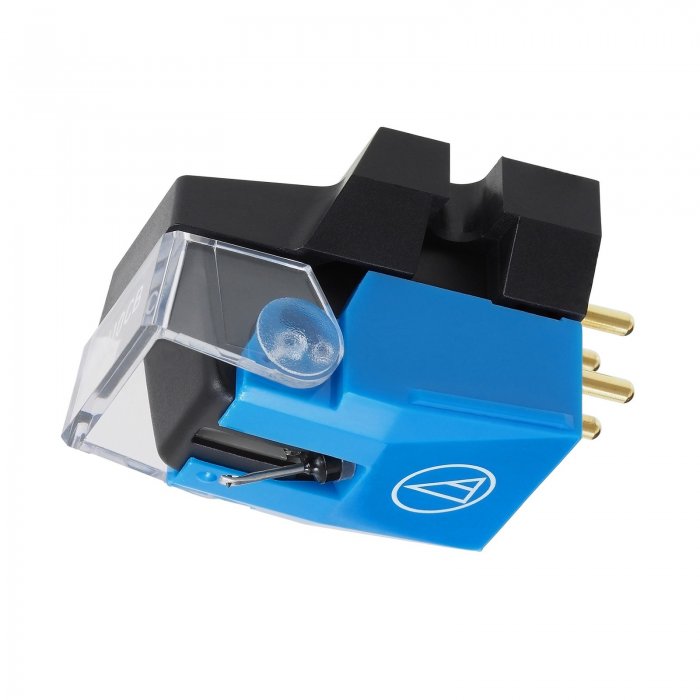

Audio-Technica VM510CB Dual Moving Magnet Cartridge

That’s EFLC — Entertaining Finds, Lower Checkout.

$159.00

Secure One-Page Checkout

Audio-Technica Authorised

This product is brand-new and factory sealed Audio-Technica VM510CB Special Order
EAN : 4961310137533 5% Price Promise
Warranty : 1yr Manufacturer Special Order Return Policy
Shipping : FREE in Canada Shipped when Received

Use checkout code THATSEFLC until Jan 31.

$53/mo suggested payments with 3 month special financing now with Flexiti.Apply once, shop anytime with Flexiti!

Details

Dual Moving Magnet Stereo Cartridge

Entry-level VM cartridge model equipped with a conical bonded stylus. The round stylus is less likely to be affected by placement and boasts stable tracing performance.

Features:

Aluminium cantilever
Para-toroidal coils improve generating efficiency
Centre shield plate between the left and right channels reduces crosstalk
Durable low resonance polymer housing
Conical Bonded stylus for less critical tilt angle adjustment allowing more flexible use on various tonearms
VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB

Audio-technica's Internationally-patented Dual Magnet Design Replicates The Structure Of The Cutter Head.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal Generating System

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre Shield Plate Reduces Crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

Description image for Audio-Technica VM510CB Dual Moving Magnet Cartridge

Specifications

Specifications:

Type: VM Type
Mounting: 1/2" centres
Frequency Response: 20 - 20,000Hz
Channel Separation: 25dB (1kHz)
Output Channel Balance: 1.5dB (1kHz)
Output Voltage: 5.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8 - 2.2g (2.0g standard)
Stylus Shape: Conical Bonded
Stylus Size: 0.6 mil
Stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 2,700Ω (1kHz)
Static Compliance: 35 x 10-6 cm/dyne
Dynamic Compliance: 8 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance: 47,000Ω
Recommended Load Capacitance: 100 - 200pF
Weight: 6.4g
Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus: VMN10CB
Accessories Included: Cartridge installation screws 5mm x 2 and 10mm x 2, Washer x 2, Hexagon nut x 2
